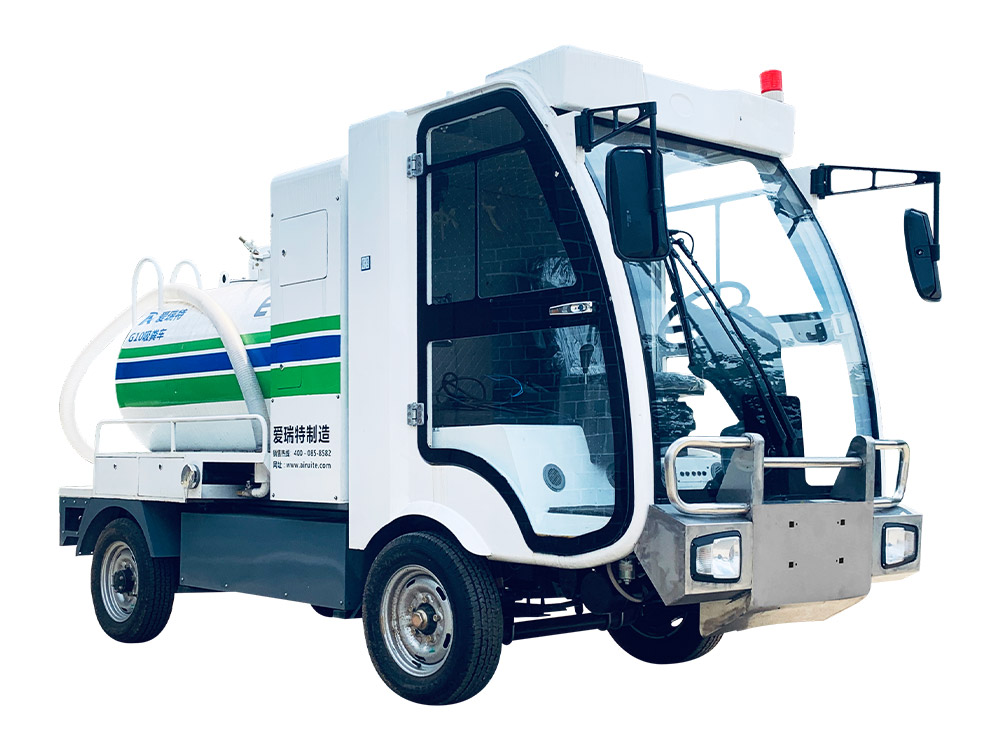

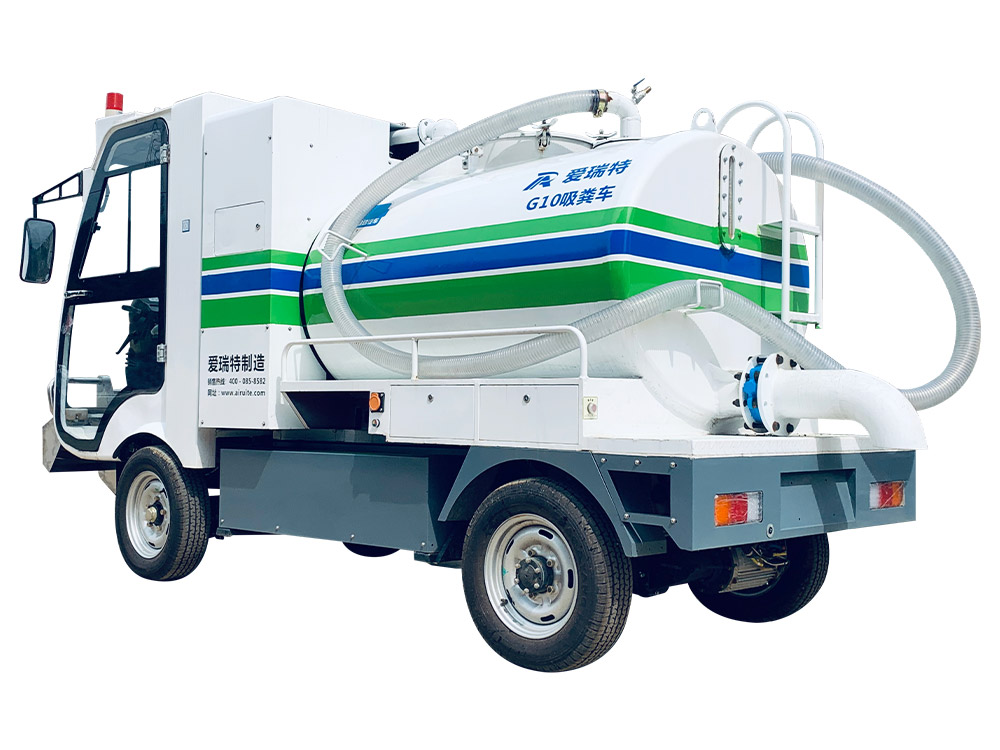

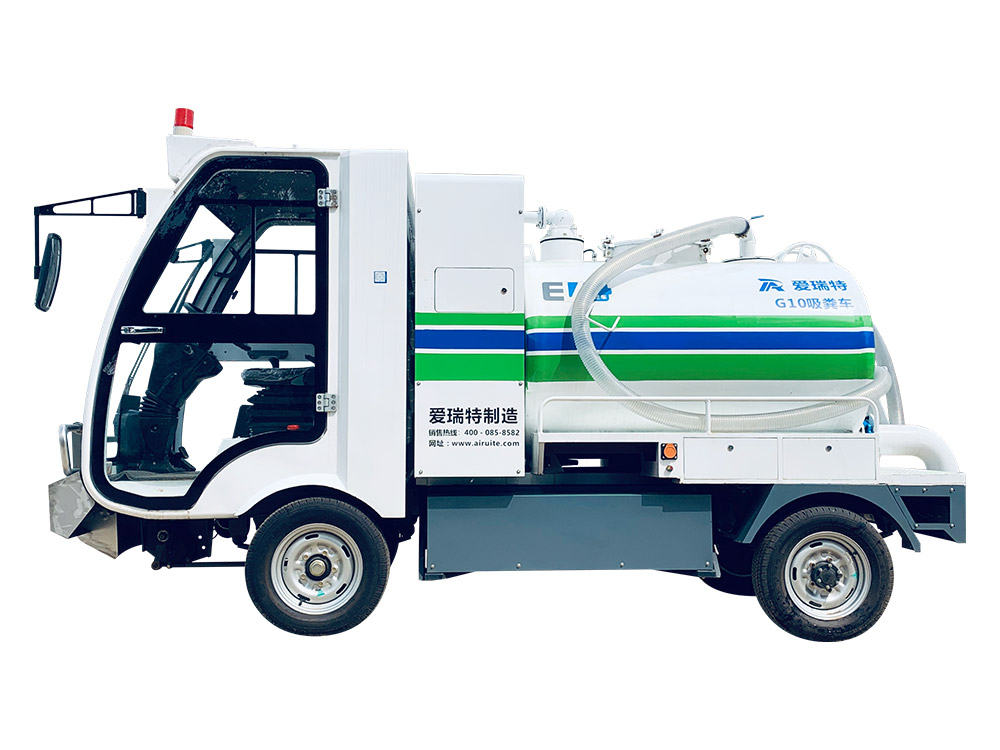

Ruibao G10 pure electric manure suction truck is mainly used for pumping sewage, sewage slurry, septic tank and liquid mixed with small suspended debris in villages and towns, property communities, government institutions, scenic spots, factories and mining enterprises. It has low cost and zero emission.
◆ Chassis: the overall riveted chassis of the vertical and horizontal beams of the frame is made of truck special steel plate, with high strength, strong bearing capacity, electrophoresis antirust treatment and corrosion resistance
◆ Body: fully enclosed cab, transparent glass on three sides, front stainless steel bumper, high-quality high-strength metal body, good working sight, safe and beautiful
◆ High grade image, leather and soft interior
◆ Drive: 192 full floating electric differential rear axle drive, stepless speed change
◆ Battery: 12 * 6V / 200ah maintenance free lead acid batteries and 72V / 250ah lithium battery pack

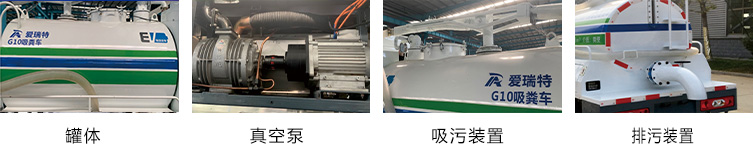

◆ Evacuation system: the air in the suction tank is pumped out to make the tank produce negative pressure, and then the feces and sewage in the septic tank are transported to the suction tank through the high-pressure hose, which is safe, stable, fast and convenient to operate
◆ Cleaning system: equipped with electric cleaning device, it can clean the whole vehicle
◆ Seat: European standard E-MARK certified damping seat, with gravity sensing device, strong safety
◆ Brake system: high power front drum rear drum double circuit vacuum hydraulic brake system and independent parking brake
◆ Steering system: high power circulating ball integrated electric power steering system
◆ Tire: four wheel 175r14 radial brand vacuum tire, wear resistance, long service life
◆ Temperature control system: cold and warm air conditioning (limited to lithium battery version)
| Parameters | Ruibao G10 pure electric manure suction truck |
| Voltage / rated power | 72V/5.5Kw |
| Mileage | ≥100Km |
| Tank volume | 1.2m3 |
| Volume of clean water tank | 60L |
| Maximum vacuum | 90Kpa |
| Suction depth | ≥3m |
| Maximum speed | 35Km/h |
| Gradient | ≥30% |
| braking distance | ≤5m |
| Minimum turning radius | ≤5m |
| Net weight | 2360kg（Lead acid）、2280kg（Lithium battery） |
| Overall dimension (L × w × h) | 4360×1455×2180mm |
